01129

Jockey Wheel Extra Height 200mm

Part No. 01129
Available

To suit Adventure Pack models.

Features:

  • Ease of use is the benefit when selecting an AL-KO Swivel Bracket Jockey Wheel
  • This unique design is covered by Registered Design in Australia and New Zealand
  • The swivel bracket can be either welded or bolted to the drawbar
  • A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar
  • Ideal for caravan use

Specifications:

  • Surface finish: Zinc Plated
  • Static Capacity: 400kg
  • Outer Tube Dia.: 48mm
  • Weight: 7kg
  • Wheel Dia.: 200mm
  • Height Closed (H1):730mm
  • Height Open (H2):995mm
  • Bottom of wheel to bottom rib center when closed (G1): 370mm
  • Bottom of wheel to bottom rib center when closed (G2): 635mm

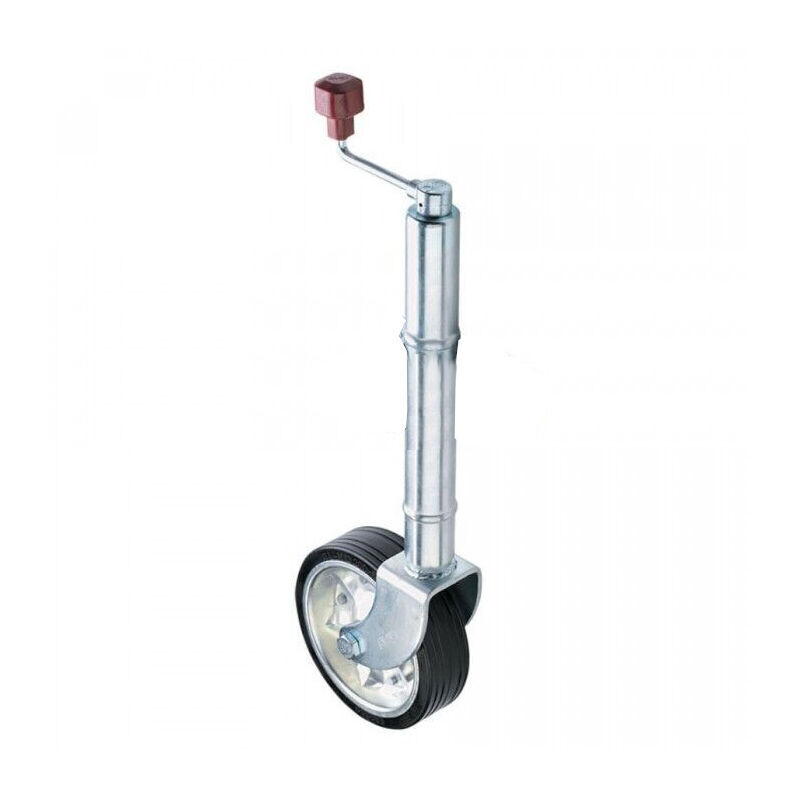

*Photo for display purposes only, actual jockey wheel is higher.

$139.00
